Home LCD Digital Display Power Consumption Meter Single Phase Energy Meter Watt Wattmeter kWh 230V AC 50Hz Electric Din Rail

100% of buyers enjoyed this product! 51 orders
List price:
Price:
You save:
(%)
894
Quantity:
  • Free Worldwide Shipping
  • 100% Money Back Guarantee
  • 100% Secure Payments

Product Description

Features:
Rated current: 5A
Maximum current: 32A
Pulse frequency: 500imp / kwh

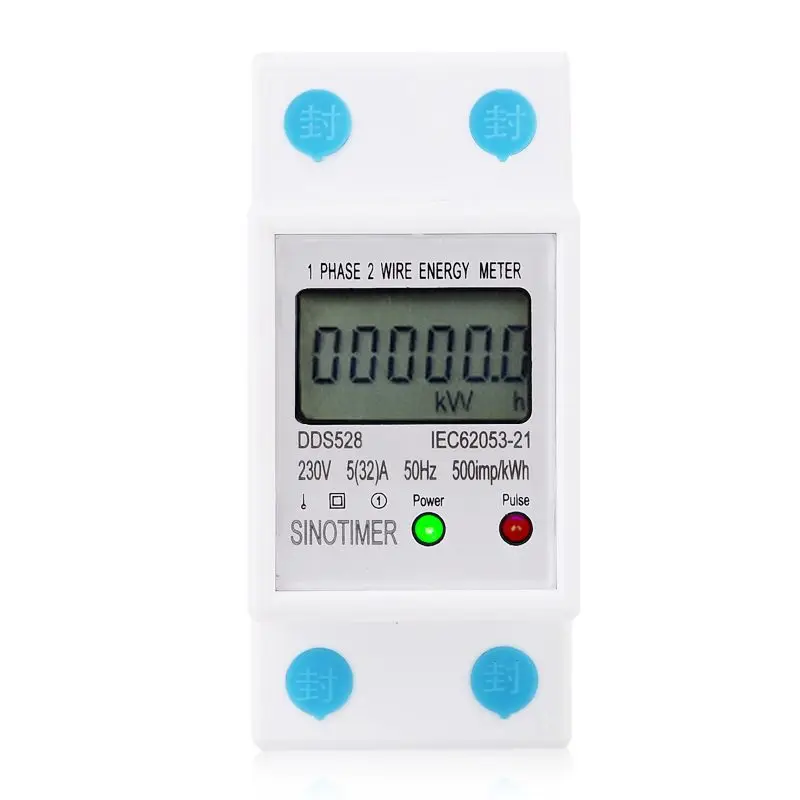

LCD display with backlight
Pulse LED indicates working of meter. Pulse output with optical coupling isolation

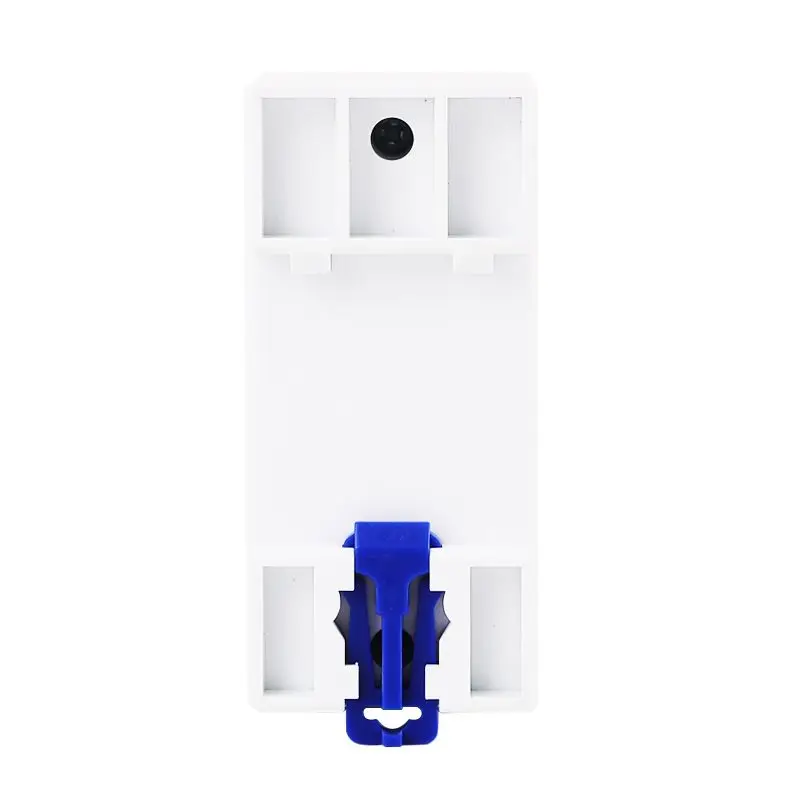

35mm din rail installation
Note: This model is without Backlight display.
Product advantages:
1. Compared with the traditional meter, this product looks small and beautiful, light weight, easy to install!
2. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity
Up to 12 times the base reference current
3. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!
Package will include:
1 pcs Energy meter DDS528
528
2
3
4
99

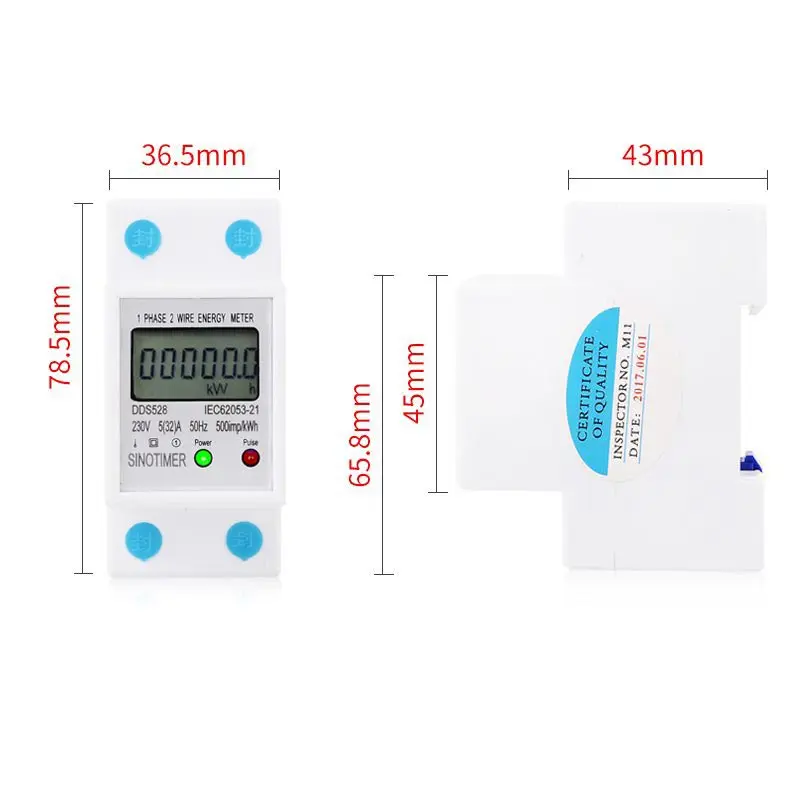

size
wiring

Reviews (7)

Average Star Rating:
5 out of 5 (7 Ratings)

Feedback Rating for This Product

Positive (100%) 5 Stars (7)
4 Stars (0)
Neutral (0%) 3 Stars (0)
Negative (0%) 2 Stars (0)
1 Stars (0)
Buyer Real customer reviews

Leave a Review

Item Specifics

Brand Name:
 SINOTIMER
Display Type:
 LCD
Model Number:
 DDS528
Measuring Energy Range:
 99999.9
Dimensions:
 78.5*65.6*36.5mm
Output Voltage:
 230V AC
DIY Supplies:
 Electrical
Phase:
 Single Phase
Max Operating Current:
 20A - 49A
Operating Temperature:
 -10 to 50'C
Rated Voltage:
 230V
Power Supply:
 AC
Accuracy Class:
 1
Display:
 total Energy KWH
Backlit:
 NO
